DSP-4 D
DSP-4 D
Description

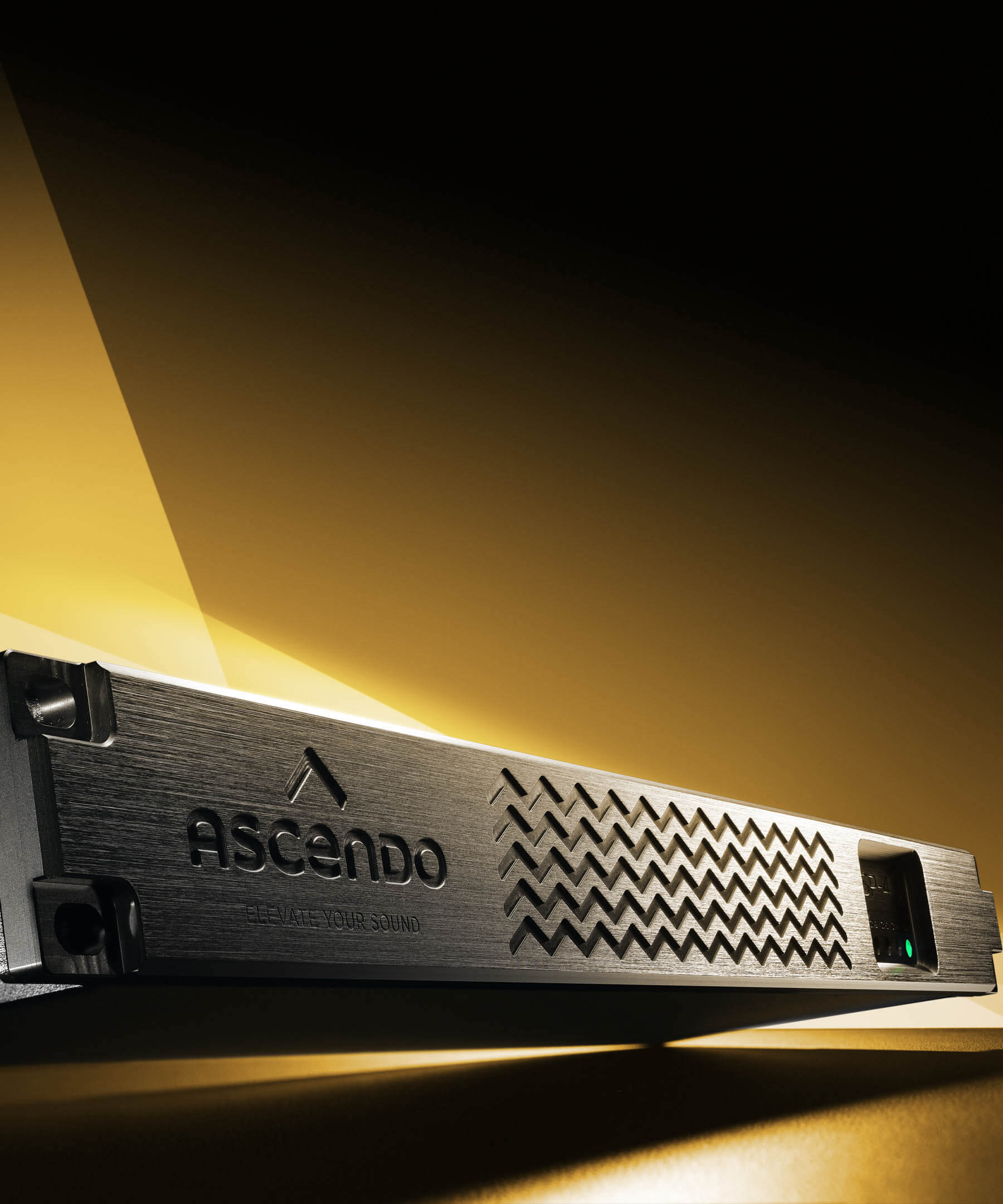

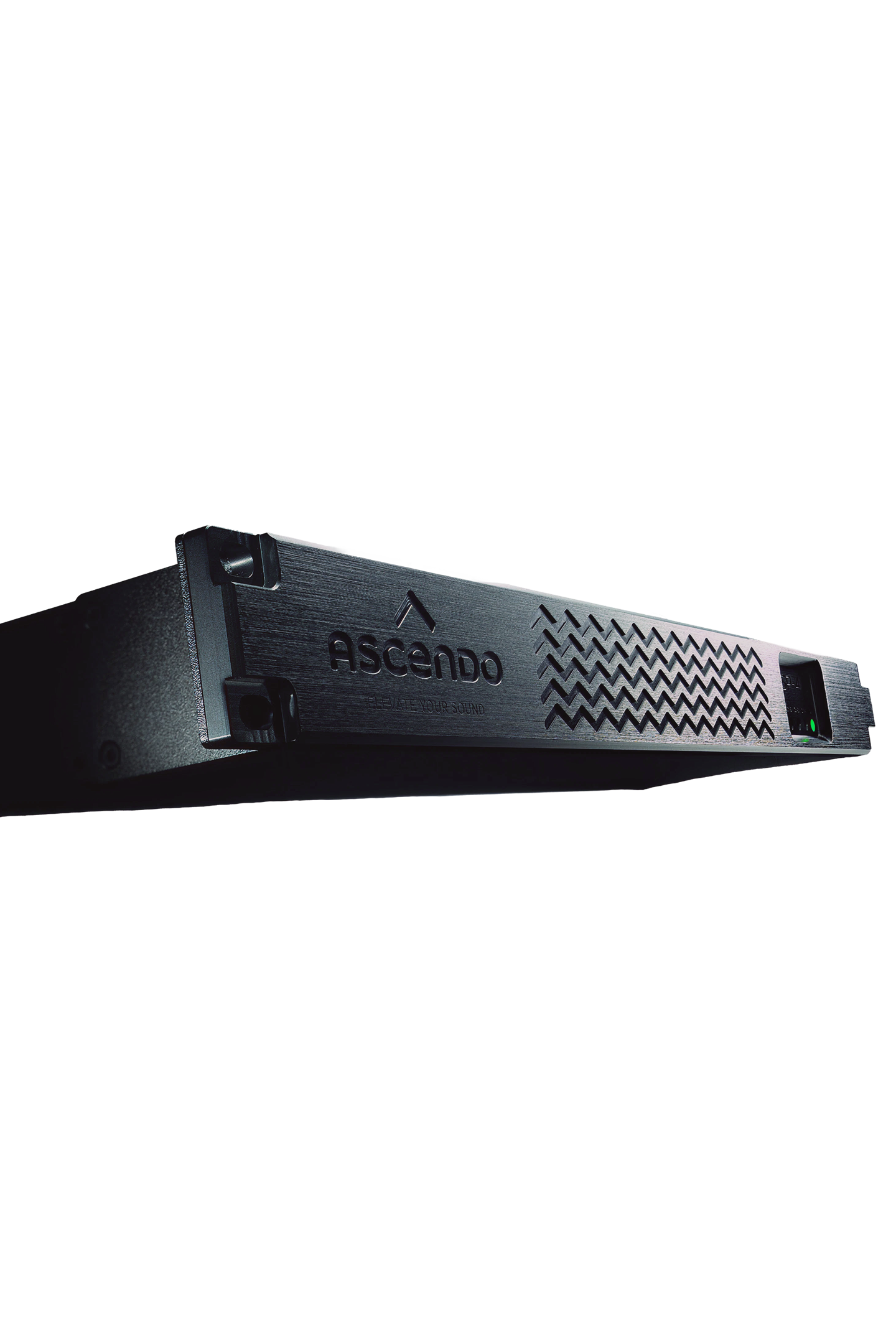

The DSP-4D standalone digital signal processor (DSP) is a powerful and smart DSP processor primarily for use in combination with ASCENDO’s non-DSP amps for use in our subwoofer systems.
This DSP system isn't just powerful—it's smart. ASCENDO designed a system control interface that can manage multiple machines from a single user interface, handling hundreds, if not thousands, of DSP channels. This system is fully compatible with Dante and AES67, ensuring seamless interoperability with various AoIP systems like Ravenna, Milan, AVB, and Dante.
This standalone DSP is a great upgrade for any home theater immersive audio system. It’s more than just a component—the DSP-4D is the heartbeat of a high-performance home theater system, offering clarity, power, and precision.
Specification
Inputs
ADC Frequency Response
20 Hz - 20 kHz: +0.0 -1.0 dB (Slow Roll-off Filter)
ADC Dynamic Range
typ 120 dB (A)
ADC Fullscale
20 dBV, 22.2 dBu, 10 V RMS
Analog Input Impedance
20 kOhm
AES3 Samplingrate
44.1 kHz - 192 kHz ASRC
DANTE Samplingrate
48 kHz / 96 kHz
DANTE RX Channels
2
Outputs
Max Output Voltage
15.2 dBu 6.3 V peak 4.47 V RMS
Max DC Offset
< 2 mV
Frequency response
20 Hz - 20 kHz: +0.0 -1.8 dB (DAC Slow Roll-off Filter)
Output Noise (Analog Input)
typ -107 dBu (A)
Output Noise (Digital Input)
typ -120 dBu (A)
Dynamic Range (Digital Input)
typ 102 dB (A)
Output Impedance
100 Ohm
DSP
Architecture
ARM-based floating point
Inputs (Channels)
4 x input matrix per channel (DANTE / AES67 via DEP/ AES3 / Analog), sine, white- pink- brown-noise
Level Control
Mute, Volume, Phase
User-Strip Filter
32 x EQ / Highpass / Lowpass
Filter types
bell, notch, highshelf, lowshelf, allpass 1st / 2nd order
High- Lowpass types
6 - 48 dB/Oct, Bessel, Butterworth, Linkwitz/Riley, Variable Q
FIR Filter
512 Tabs, ASCII file import
Delay
48000 Samples / 330m / 1s (resolution 0.001 units) per channel
Converters
ADC: ES9822PRO DAC: ES9081

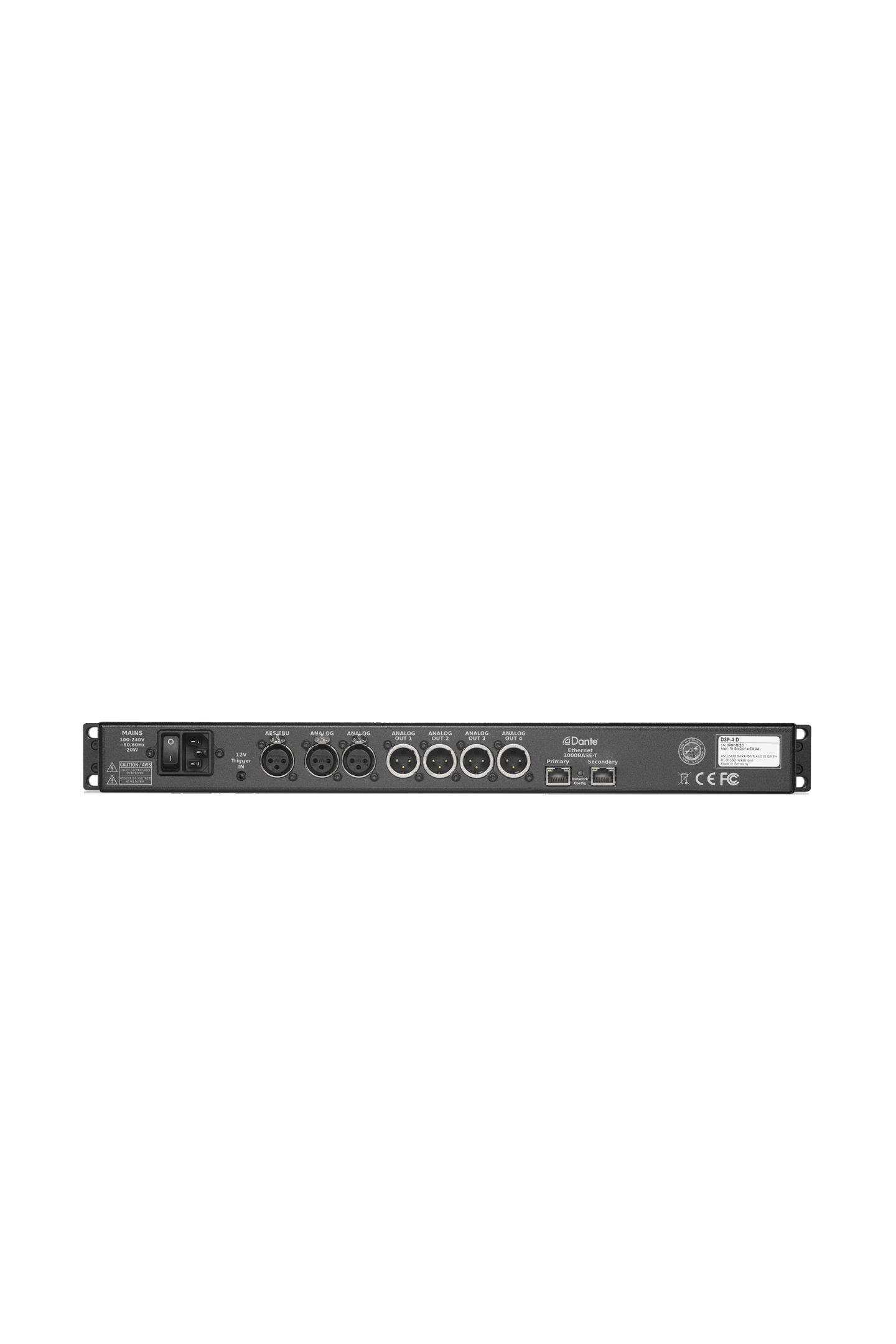

Connector
Control input connectors
Dual RJ45 ( 1 Gbit/s Ethernet )
Audio signal input connectors
RJ45 (4 x DANTE / AES67) XLR (1 x Analog In balanced, 1 x AES3)
Audio signal output connectors
XLR (4 x Analog Out balanced, DSP controlled)
12 V Trigger In
Galvanic Isolated 3.5mm TS (Mono) audio jack (Tip +12 V, Sleeve GND)
AC mains
IEC C14 inlet / IEC C13 plug
AC Mains Power
Power Supply
Universal, regulated switch mode
Operating Voltage
90 - 264 VAC 50 / 60 Hz
AC Current typ.
@ 230 V: 25 mA @ 110 V: 55 mA
Inrush Current
40 A max.
Earth Leakage Current
< 0.2 mA / 240 V
Thermal
Enviromental operating temperature (Cooling)
0 - 40°C
Thermal dissipation
Passive cooled, no fan
Standby
@ 230 V: 0.04 kcal / h | 0.17 BTU / h @ 110 V: 0.04 kcal / h | 0.16 BTU / h
On
@ 230 V: 5 kcal / h | 20 BTU / h @ 110 V: 5 kcal / h | 20 BTU / h
User Interfaces
Hardware

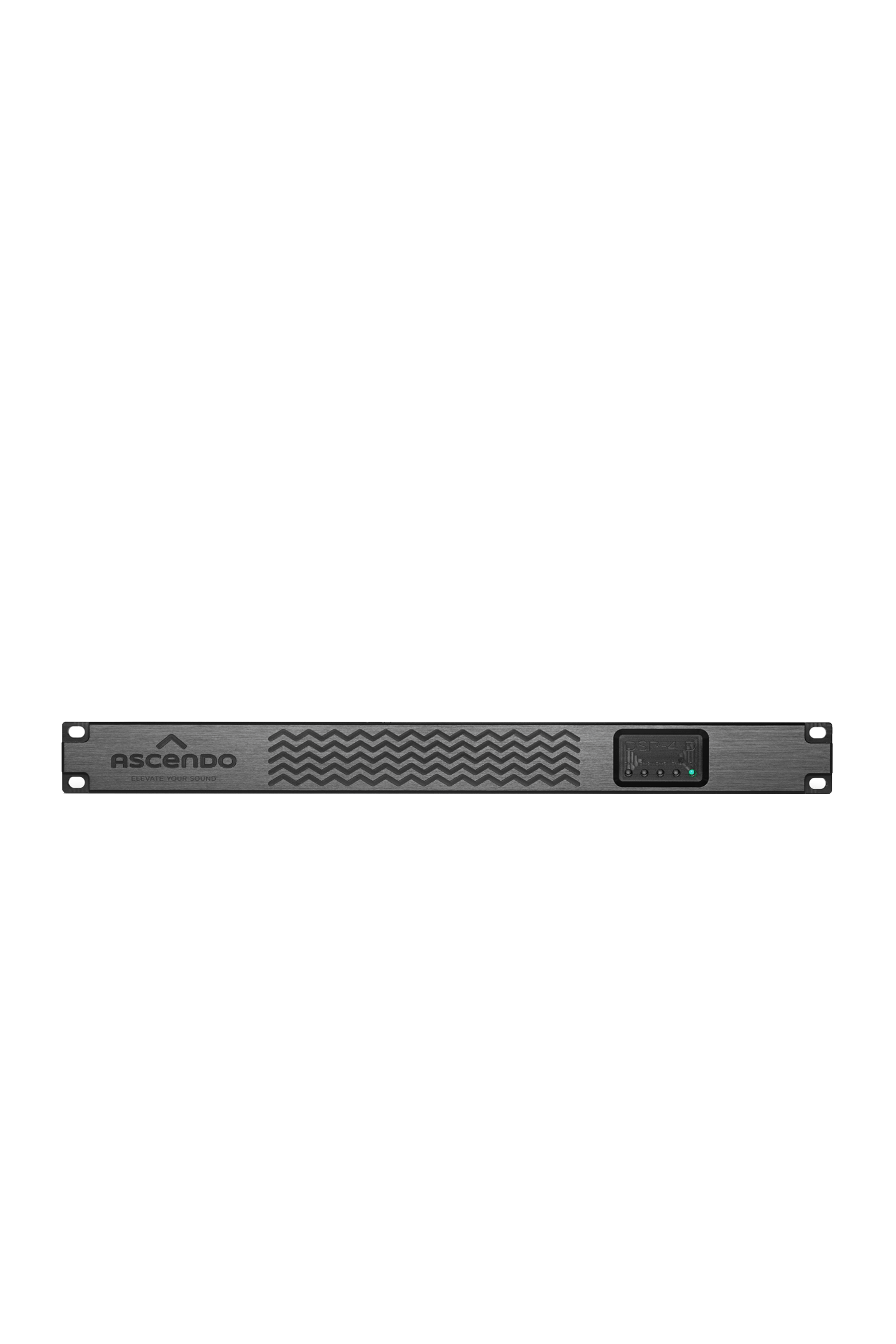

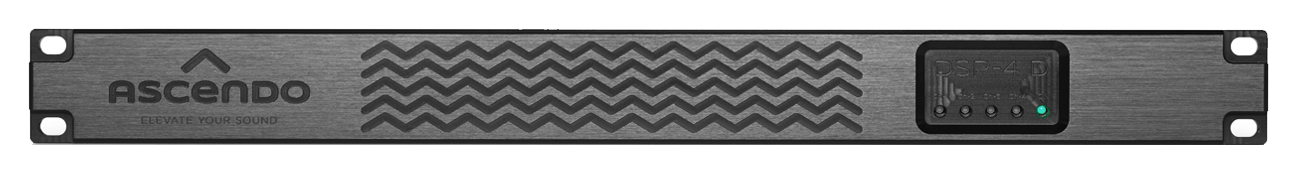

Multicolor LED for all 4 Channels and Status Mains Switch (back)
Software
MAXX REMOTE RESTful-API
Dimensions & Weight
Dimensions (W/H/D) mm
482.6 | 43.75 | 100 (1RU)
Dimensions (W/H/D) inch
19 | 1 3/4 | 3 15/16 (1RU)
Packing Dimensions (W/H/D) mm
495 | 410 | 110
Packing Dimensions (W/H/D) inch
19 1/2 | 16 1/8 | 4 5/16
Weight
4.63 lbs | 2.1 kg
Gross Weight
7.72 lbs | 3.5 kg
